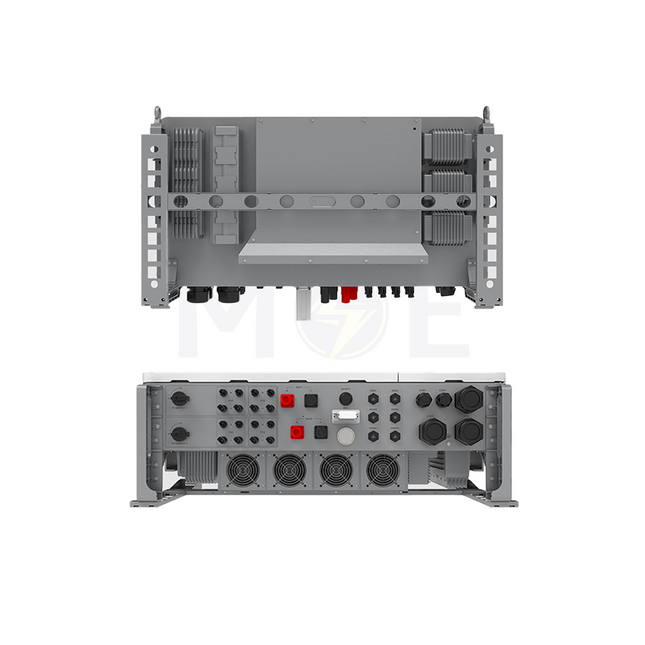

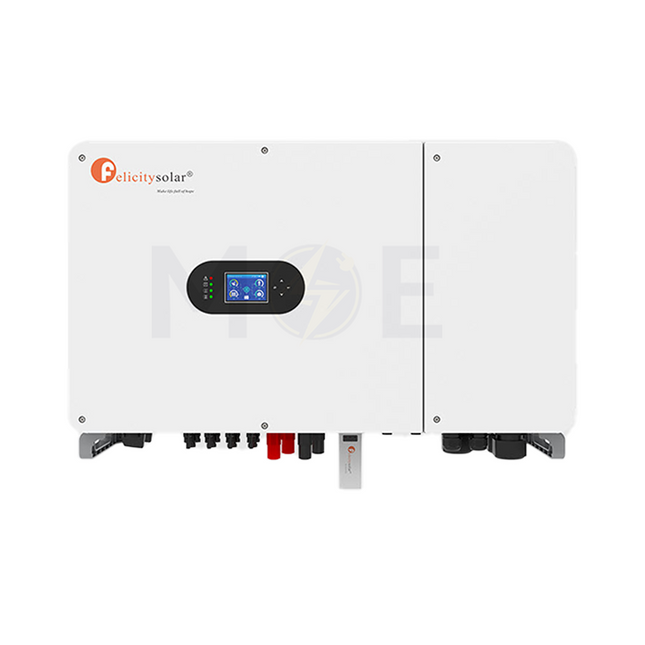

Felicity Three Phase Hybrid Solar Inverter 50kW 160~800V 4 MPPT | IVGM50KHP3G2-General-Series Version: IVGM25~50kW-P3G2 Series-Rated Output Power: 50000W-Battery Voltage Range: 160~800V DC-Nominal AC Output Voltage: 230/400V AC-Frequency: 50/60Hz-Output Waveform: Pure Sine Wave-Phase: Three Phase-Mounting Type: Wall-Mounted-Battery Communication: RS485,CAN
-Solar-Solar Charger Type: 4 MPPT-Maximum DC Access Power: 100000W-Maximum PV Input Power: 80000W-Maximum PV Input Voltage: 1000V DC-MPPT Voltage Range: 150–850V DC-PV Input Channels: Up to 8-MPPT Trackers: 4
-Battery-Battery Type: LFP (LiFePO4)-Battery Inputs: 2 Independent Inputs-Maximum Charge / Discharge Current: 50A+50A
-Main Features-Parallel Capability: Up to 12 Units-Peak Off-Grid Power: 1.5× Rated Power for 10s-Maximum Efficiency: 97.6%-Transfer Time: <10ms-IP Rating: IP65-Wi-Fi Monitoring: Supported-Zero Export: Supported-Generator / Smart Load / Micro-Inverter Port: Supported-Application: Factories, supermarkets, hotels, commercial buildings, agricultural facilities, and medium-scale industrial solar energy systems.-Size: 46.9x11.4x77.4cm-Color: White-Usage: Manages solar, high-voltage batteries, grid, generator, and backup loads in a three-phase commercial hybrid energy system.-Warranty: 5 Year Repair & Maintenance (No Replacement)-Brand: Felicity-Made in: China-Model: IVGM50KHP3G2-Ref: FLCT-IVGM50KHP3G2-Unit: Pcs
