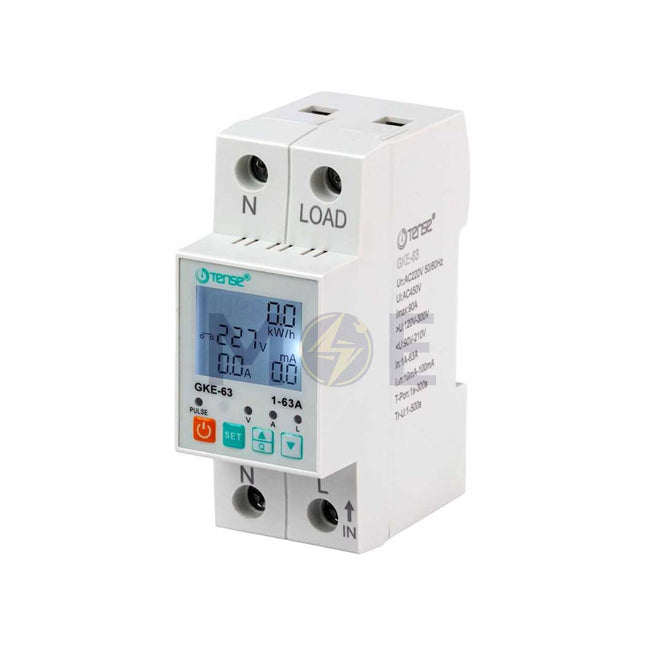

Tense Adjustable Voltage Protector /Over-Under Voltage - Current Protection Din 2Mod. 90-210V 120-300V 1-63A 0.1-99s | GKE-63-Rated Supply Voltage: 220V AC-Operating Voltage Range: 50–350V AC-Frequency: 50/60Hz-Adjustable Current Protection: 1–63A-Maximum Operating Current: 90A-Adjustable Overvoltage Protection: 120–300V-Adjustable Undervoltage Protection: 90–210V-Adjustable Earth-Leakage Protection: 10–100mA-Voltage Fault Delay: 0.1–99s-Overcurrent Fault Delay: 1–600s-Startup Delay: 1–300s-Voltage Fault Reset Delay: 1–500s-Current Fault Reset Delay: OFF–500s-Display: Backlit Digital LED, Voltage (V), Current (A), Leakage (mA), Energy (kWh)-Protection Functions: Overvoltage, Undervoltage, Overcurrent, Earth Leakage-Number of Poles: 1P+N (Single-Phase Live and Neutral Connections)-Number of Modules: 2 Modules-Mounting Type: DIN-Rail Mounted-Dimensions (W×H×D): 36 × 90 × 65.5mm-Protection Rating: IP20-Operating Temperature: −5°C to +40°C-Voltage Type: AC-Brand: Tense-Model: GKE-63-Ref: TN-GKE-63-Unit: Pcs
