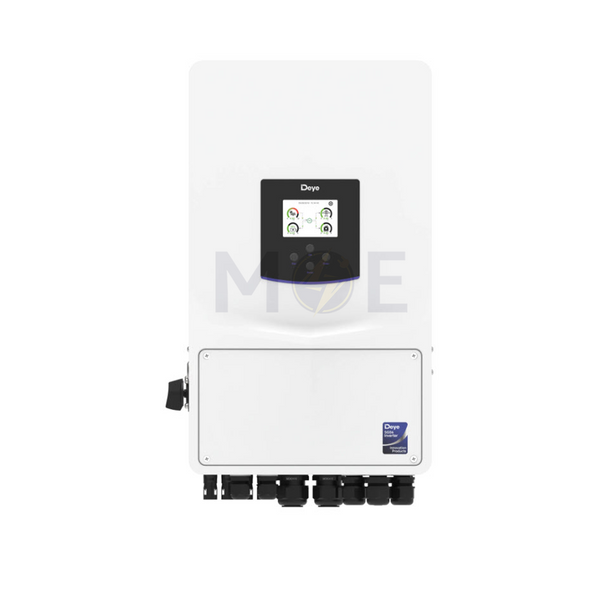

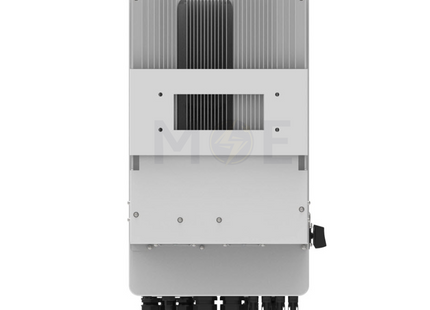

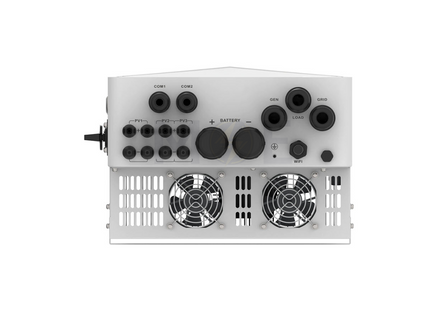

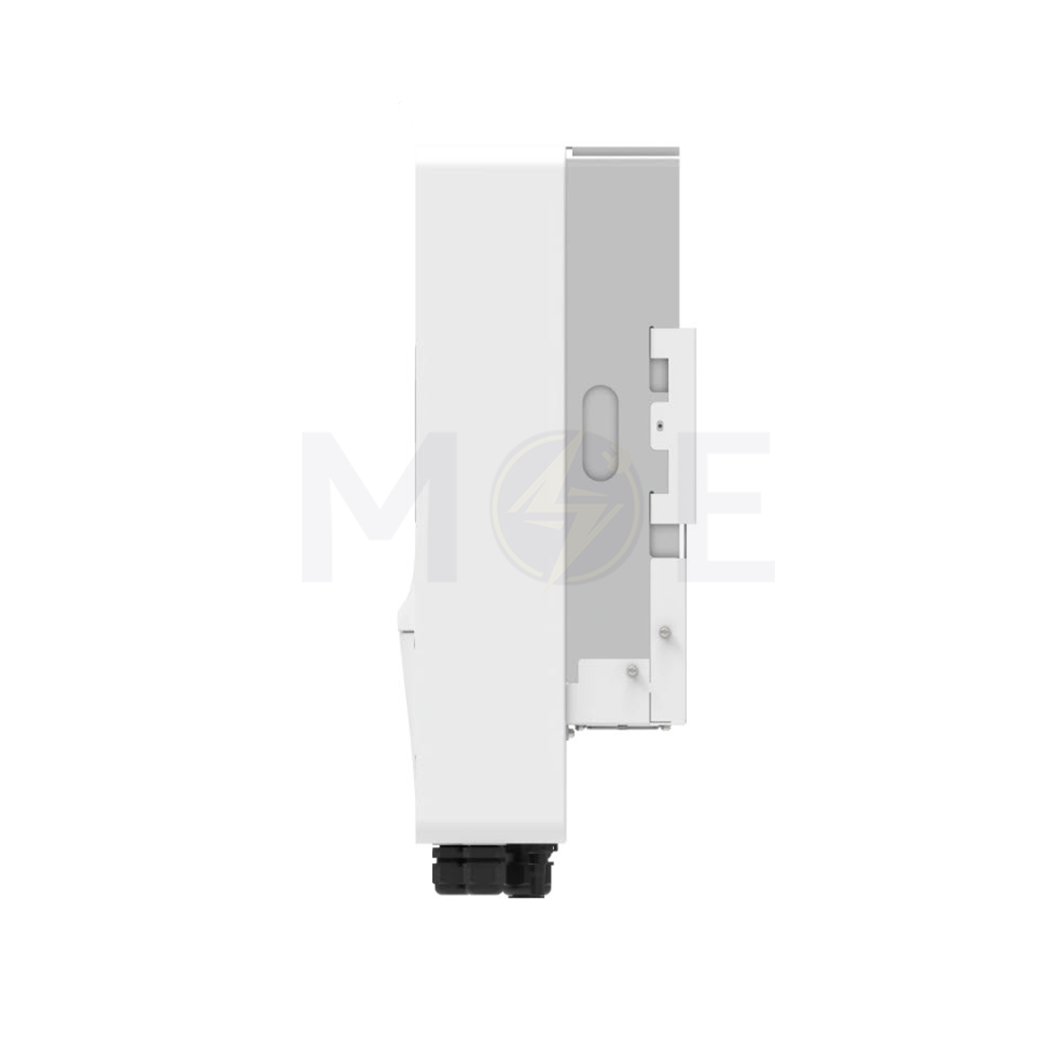

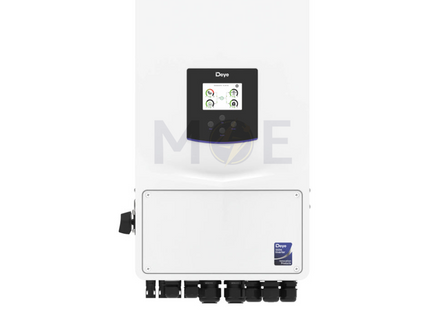

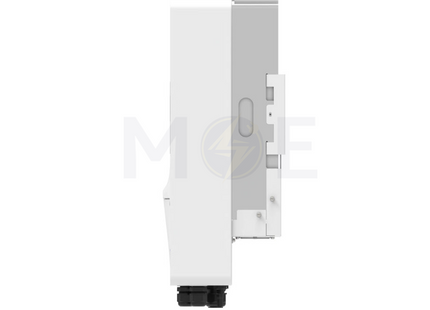

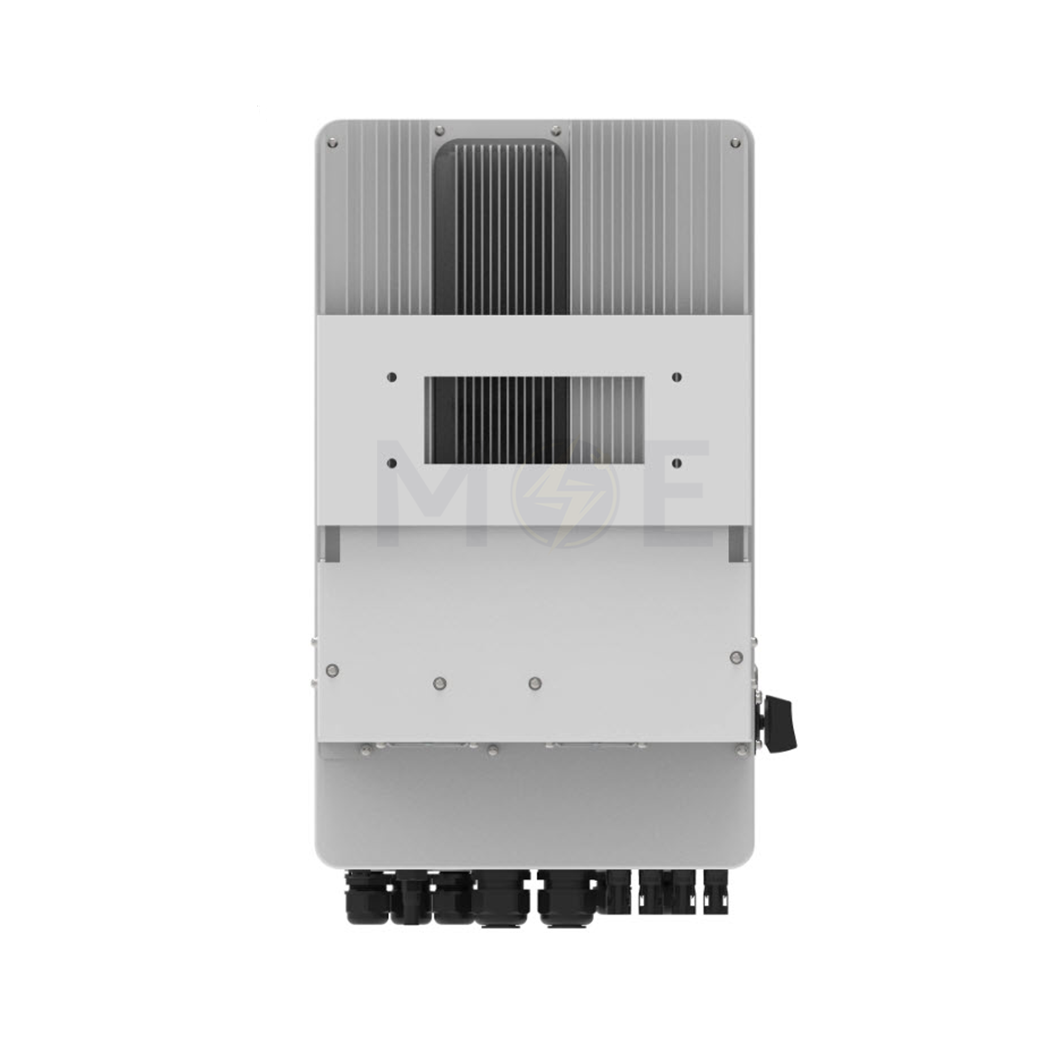

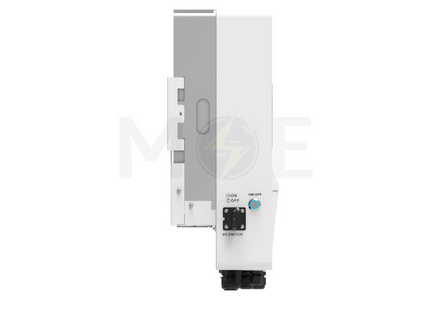

Deye Single Phase Hybrid Solar Inverter 8kW 8.8kVA 40-60V 3 MPPT | SUN-8K-SG06LP1-EU-CM3

Description

Deye Single Phase Hybrid Solar Inverter 8kW 8.8kVA 40-60V 3 MPPT | SUN-8K-SG06LP1-EU-CM3

-General
-Series Version: SG06LP1-EU-CM3 Series
-Rated Output Power: 8000W
-Max AC Apparent Power: 8800VA
-Battery Voltage Range: 40-60V DC
-Nominal AC Input/Output Voltage: 220/230V AC
-Frequency: 50/60Hz
-Phase: Single Phase
-Grid Type: Hybrid
-Mounting Type: Wall-Mounted

-Solar
-Solar Charger Type: MPPT
-Maximum PV Access Power: 16000W
-Maximum PV Input Power: 12800W
-Maximum PV Input Voltage: 500V DC
-MPPT Voltage Range: 150–425V DC
-PV Start-Up Voltage: 125V DC
-MPPT Trackers: 3
-PV Strings per MPPT: 2 + 2 + 1

-Battery
-Battery Type: Lead-Acid / Lithium-Ion
-Maximum Charging / Discharging Current: 185A
-BMS Charging Strategy: Self-Adaptive

-Main Features
-Parallel Capability: Up to 16 Units, On-Grid & Off-Grid
-IP Rating: IP65
-Communication: Wi-Fi / RS485 / CAN
-Generator Energy Storage: Supported

-Application: Homes, villas, offices, shops, and residential or light-commercial hybrid solar energy systems.
-Size: 34x58x23.4cm
-Color: White
-Usage: Manages solar, battery, grid, and backup power in one system, supplying 220/230V AC and charging compatible 40~60V batteries.

-Brand: Deye
-Made in: China
-Model: SUN-8K-SG06LP1-EU-CM3
-Ref: Deye-SUN-8K-SG06LP1-EU-CM3
-Unit: Pcs

Product form

SKU: 17193

Product Information

  • 8000W, 8800VA Max, 40~60V DC, 220/230V AC, Single Phase, Hybrid, 3 MPPT, 12800W Max PV, 185A Charging, IP65, Wall-Mounted, 34x58x23.4cm, White
  • Brand: Deye
  • Model: SUN-8K-SG06LP1-EU-CM3
  • Made in: China
  • Ref: Deye-SUN-8K-SG06LP1-EU-CM3
  • Unit: Pcs
