Description

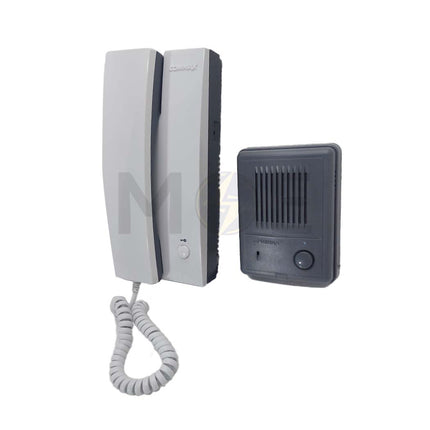

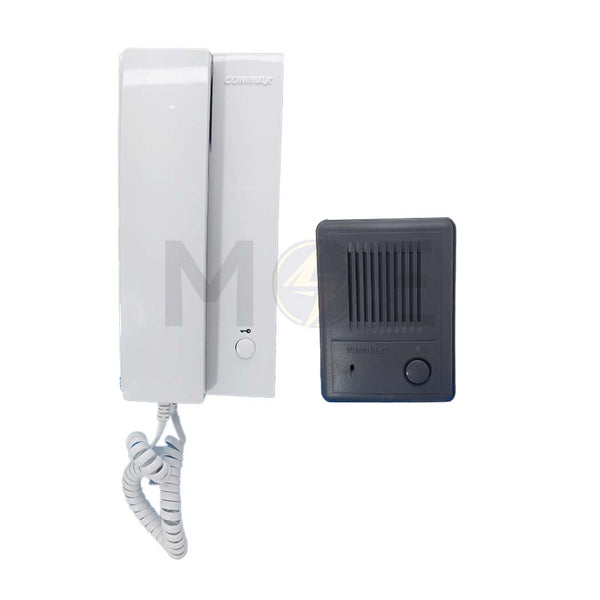

Commax Wired 2-Way Audio Door Phone Kit | DP-2LD + DR-2k
-Type: Wired 2-Way Audio Door Phone Kit
-Units Included: 1 Indoor Handset + 1 Outdoor Panel (Direct Communication)
-Mounting: Wall mount
-Communication Features: Analog, full-duplex, Gentle chime ring, Communicate with a visitor through an outdoor panel (DR-2K)
-Wiring Type: 4‑Wire
-Mounting: Wall mount
-Power Supply: (Handset: DC 6 V via 4 × 1.5 V AA batteries, and support AC adapter DC 9-12V). Outdoor panel 9 V DC supplied from the indoor handset.
-Power Consumption: Standby: ~1.7W 0.1mA / In use: ~2.5W 50mA
-Wiring Gauge & Range: 0.65mm wire up to 100 meters
-Battery Type: 4xAA (not included) for Handset unit only
-Setup: Use 4-core wire ( 2-wire between the indoor and outdoor units, 2-wire door realease)
-Compatible with: The Commax DP-2LD indoor handset and the Commax DR-2K door station are compatible and commonly used together in 2-wire audio intercom systems.
-Color: Handset: White, Outdoor panel: Gray
-Dimension: Handset 98x208x65 mm, Outdoor Unit (panel): 128x96x25 mm
-Brand: Commax
-Made in: China
-Model: DP-2LD + DR-2k
-Ref: Cmx-DP2LD-2K
-Unit: Pcs
