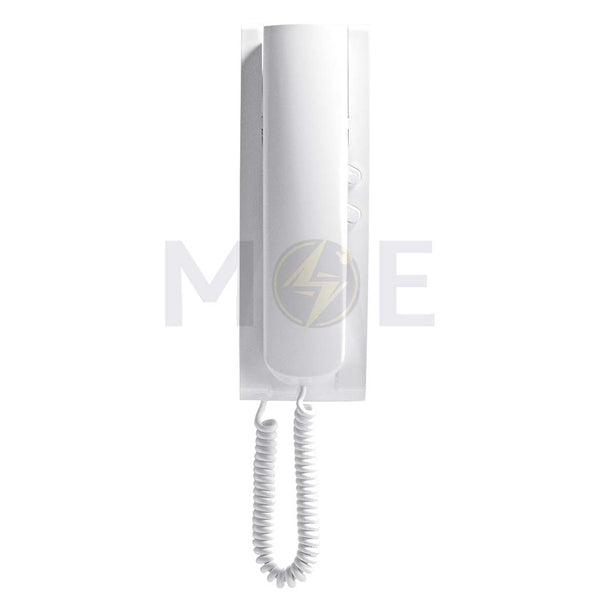

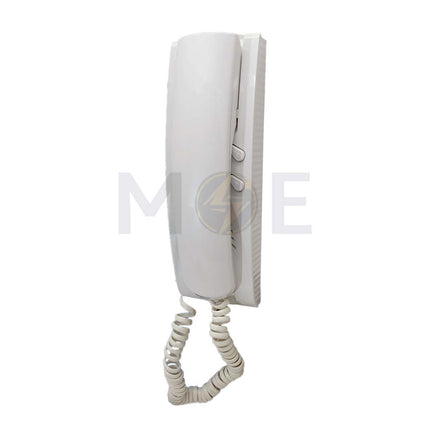

Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems Due Fili Plus | 8879
-Type: Audio Analog Indoor Handset for Door Entry System
-Serie & Compatible Panels: Serie Pixel, Serie 1300 Audio/Video Panels
-Units Included: 1 Indoor Handset
-Buttons & Controls: Door Release, room-to-room call (often used for stair‑light or secondary function)
-Communication Features: Analog, full-duplex
-Wiring Type: 2-wire BUS
-Mounting: Wall mount
-Power Supply: 20–26 V DC, regulated by the central power supply unit, supplied via the 2-wire bus from the system's Due Fili Plus power supply module (e.g., Elvox 6923, 6925, or similar).
-Power Consumption: Standby 10 mA, max 150 mA
-Wiring Gauge & Range: 1mm² wire up to 100 meters, 1.5mm² wire up to 150 meters
-Setup: Connect terminals 1 and 2 to the BUS system from the central controller/power supply
-Compatible with: Works with all internal units in the Vimar Due Fili Plus range( Serie Pixel, Serie 1300 Audio/Video), including audio and video handsets and monitors. Works with: Elvox 8870 series 2‑wire intercom systems "Due Fili/Plus". Not compatible with: 8870–8875 series that do not use the 2-wire bus architecture. Compatible with Due Fili expansion interfaces and power supply modules (e.g., model 6922.1)
-Color: White
-Dimension: 75x222x64 mm
-Brand: Elvox
-Made in: Italy
-Model: 8879
-Ref: Elv-Due Fili-Int-Ph-8879
-Unit: Pcs
