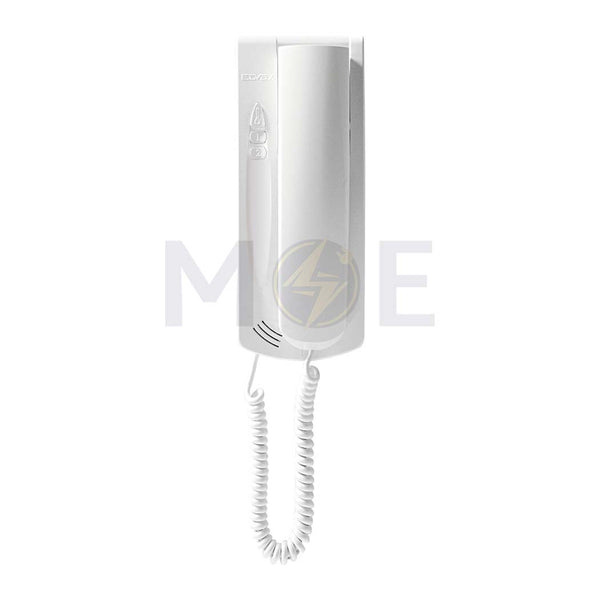

Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems | 62K0/2

Description

Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems | 62K0/2

-Type: Audio Analog Indoor Handset for Door Entry System
-Serie & Compatible Panels: Serie 8000 Optional Audio/Video Panels
-Units Included: 1 Indoor Handset
-Buttons & Controls: Door Release, room-to-room call, and slot for one extra
-Communication Features: Analog, full-duplex
-Wiring Type: Multi-wire system
-Mounting: Wall mount
-Power Supply: 15–20 V DC (provided via the Due Fili Plus BUS line — no separate power cable required), A central power supply or control unit such as the Vimar Elvox 6922.1, 930G, or 40102, which injects 15–20 V DC onto the 2-wire bus.
-Power Consumption: ~9.7 W 0.8A
-Wiring Gauge & Range: 0.5 mm² wire up to 50M, 0.75 mm² up to 100M, 1.5 mm² Up to 200M.
-Setup: Connect its terminals to the central control unit using the 4+n wiring system (audio ground, audio signals, call button line, plus any auxiliary lines)
-Compatible with: The 62K0/2 is fully compatible with the “Sound System” lineup from Vimar/Elvox, including: Indoor audio handsets, Bus central units Panel serie 8000, Optional Audio/Video, 930G and 62IG/62KF series entry phones, Transformers (40102), Other outdoor panels.
-Color: White
-Dimension: 232×95×69 mm
-Brand: Elvox
-Made in: Italy
-Model: 62K0/2
-Ref: Vim-Elv-Int Ph-62K0/2
-Unit: Pcs

Read more

Product form
MOELECTRIC mohammad osman electric MOE كهرباء عثمان محمد عثمان الكتريكView Item Attachment
MOELECTRIC mohammad osman electric MOE كهرباء عثمان محمد عثمان الكتريكView Item Related Link

SKU: 1383

Product Information

  • Audio Analog, (Door release, room to room call, +1 extra slot), Multi-wire, Wall mount, DC 15-20V Supplied by control Panel unit, White
  • Brand: Elvox
  • Model: 62K0/2
  • Made in: Italy
  • Ref: Vim-Elv-Int Ph-62K0/2
  • Unit: Pcs
    • Shipped today? Order within: Sep 13, 2025 23:59:00 +0300

    Description

    Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems | 62K0/2

    -Type: Audio Analog Indoor Handset for Door Entry System
    -Serie & Compatible Panels: Serie 8000 Optional Audio/Video Panels
    -Units Included: 1 Indoor Handset
    -Buttons & Controls: Door Release, room-to-room call, and slot for one extra
    -Communication Features: Analog, full-duplex
    -Wiring Type: Multi-wire system
    -Mounting: Wall mount
    -Power Supply: 15–20 V DC (provided via the Due Fili Plus BUS line — no separate power cable required), A central power supply or control unit such as the Vimar Elvox 6922.1, 930G, or 40102, which injects 15–20 V DC onto the 2-wire bus.
    -Power Consumption: ~9.7 W 0.8A
    -Wiring Gauge & Range: 0.5 mm² wire up to 50M, 0.75 mm² up to 100M, 1.5 mm² Up to 200M.
    -Setup: Connect its terminals to the central control unit using the 4+n wiring system (audio ground, audio signals, call button line, plus any auxiliary lines)
    -Compatible with: The 62K0/2 is fully compatible with the “Sound System” lineup from Vimar/Elvox, including: Indoor audio handsets, Bus central units Panel serie 8000, Optional Audio/Video, 930G and 62IG/62KF series entry phones, Transformers (40102), Other outdoor panels.
    -Color: White
    -Dimension: 232×95×69 mm
    -Brand: Elvox
    -Made in: Italy
    -Model: 62K0/2
    -Ref: Vim-Elv-Int Ph-62K0/2
    -Unit: Pcs
