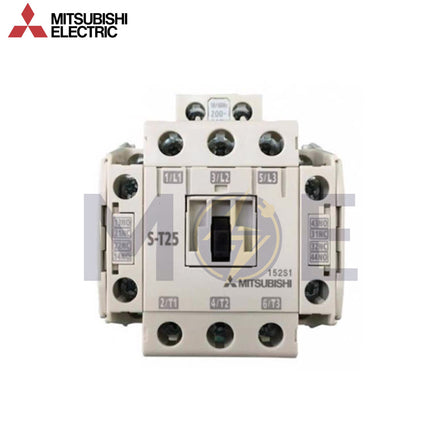

Mitsubishi MST25 KPPMCG Magnetic Motor Starter 3P 22A (18–26A) 15kW 380V AC | MST25 KPPMCG-22A

Description

Mitsubishi MST25 KPPMCG Magnetic Motor Starter 3P 22A (18–26A) 15kW 380V AC | MST25 KPPMCG-22A

- Product Type: Direct-On-Line (DOL) Magnetic Motor Starter
- Series: MS-T
- Starter Frame: MS-T25
- Compatible With: Three-Phase AC Motors Drawing 18–26 A
- Adjustable Overload Range: 18–26 A
- Heater Designation: 22 A
- AC-3 Rated Current: 26 A at 380–440 V AC, Global Rating
- Conventional Free-Air Thermal Current: 32 A
- Number of Poles: 3P
- Main Contact Arrangement: 3NO
- Contactor Auxiliary Contacts: 2NO+2NC
- Overload Relay Trip Contacts: 1NO+1NC
- Motor Circuit: Three-Phase AC
- Control Supply Voltage: 380 V AC
- Rated Operational Voltage: Up to 690 V AC
- Rated Insulation Voltage: 690 V
- Rated Motor Power: 15 kW at 380–440 V AC
- Integrated Components: Magnetic Contactor and Thermal Overload Relay
- Relay Technology: 2-Element Thermal Overload Relay
- Trip Class: Class 10A
- Protection Functions: Motor Overload and Locked-Rotor Protection
- Connection Type: Screw Terminals
- Main Terminal Screw Size: M4
- Control Terminal Screw Size: M3.5
- Mounting Type: DIN Rail / Panel Mount
- Model: MST25 KPPMCG-22A
- Made in: Japan
- Brand: Mitsubishi Electric
- Ref: MITSB-Cont-MST25 KPPMCG-22A
- Unit: Pcs

Product form

SKU: 3032

Product Information

  • Mitsubishi MST25 KPPMCG direct-on-line magnetic motor starter for controlling and protecting three-phase AC motors drawing 18–26A. It combines a 3-pole magnetic contactor with a 22A thermal overload relay, adjustable from 18–26A. The starter supports motors rated up to 15kW at 380–440V AC, subject to the motor’s full-load current.
  • Brand: Mitsubishi
  • Model: MST25 KPPMCG-22A
  • Made in: Japan
  • Ref: MITSB-Cont-MST25 KPPMCG-22A
  • Unit: Pcs
