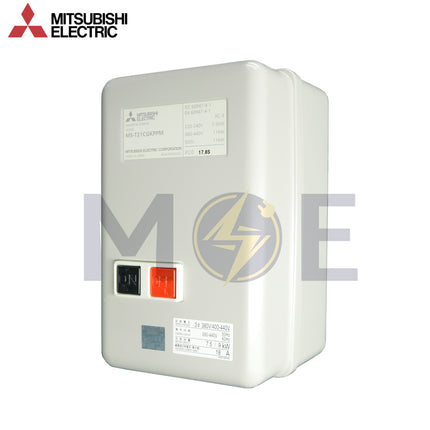

Mitsubishi MST21 KPPMCG Magnetic Motor Starter 3P 11A (9–13A) 11kW 380V AC | MST21 KPPMCG-11A

Description

Mitsubishi MST21 KPPMCG Magnetic Motor Starter 3P 11A (9–13A) 11kW 380V AC | MST21 KPPMCG-11A

- Product Type: Direct-On-Line (DOL) Magnetic Motor Starter
- Series: MS-T
- Starter Frame: MS-T21
- Contactor Frame: S-T21
- Compatible With: Three-Phase AC Motors Drawing 9–13 A
- Adjustable Overload Range: 9–13 A
- Heater Designation: 11 A
- AC-3 Rated Current: 23 A at 380–440 V AC, Global Rating
- Conventional Free-Air Thermal Current: 32 A
- Number of Poles: 3P
- Main Contact Arrangement: 3NO
- Contactor Auxiliary Contacts: 2NO+2NC
- Overload Relay Trip Contacts: 1NO+1NC
- Motor Circuit: Three-Phase AC
- Control Supply Voltage: 380 V AC
- Rated Operational Voltage: Up to 690 V AC
- Rated Insulation Voltage: 690 V
- Starter-Frame Motor Capacity: Up to 11 kW at 380–440 V AC
- Integrated Components: S-T21 Magnetic Contactor and TH-T25 Thermal Overload Relay
- Relay Technology: 2-Element Thermal Overload Relay
- Trip Class: Class 10A
- Protection Functions: Motor Overload and Locked-Rotor Protection
- Connection Type: Screw Terminals
- Main Terminal Screw Size: M4
- Control Terminal Screw Size: M3.5
- Mounting Type: DIN Rail / Panel Mount
- Model: MST21 KPPMCG-11A
- Made in: Japan
- Brand: Mitsubishi Electric
- Ref: MITSB-Cont-MST21 KPPMCG-11A
- Unit: Pcs

Product form

SKU: 3030

Product Information

  • Mitsubishi MST21 KPPMCG direct-on-line magnetic motor starter for controlling and protecting three-phase AC motors drawing 9–13A. It combines an S-T21 3-pole magnetic contactor with an 11A thermal overload relay adjustable from 9–13A. The starter frame has a motor capacity of up to 11kW at 380–440V AC; the connected motor’s full-load current must remain within the overload relay’s 9–13A range.
  • Brand: Mitsubishi
  • Model: MST21 KPPMCG-11A
  • Made in: Japan
  • Ref: MITSB-Cont-MST21 KPPMCG-11A
  • Unit: Pcs
Currently delivering in Lebanon only.Currently delivering in Lebanon only.

Delivery is available across Lebanon only. Same-day delivery in Beirut and its suburbs, while other areas are delivered within 2–4 working days. International shipping is currently unavailable.

Check Availability & Alternatives  Same-day delivery in Beirut & suburbs
2–4 working days across Lebanon

Description

Mitsubishi MST21 KPPMCG Magnetic Motor Starter 3P 11A (9–13A) 11kW 380V AC | MST21 KPPMCG-11A

- Product Type: Direct-On-Line (DOL) Magnetic Motor Starter
- Series: MS-T
- Starter Frame: MS-T21
- Contactor Frame: S-T21
- Compatible With: Three-Phase AC Motors Drawing 9–13 A
- Adjustable Overload Range: 9–13 A
- Heater Designation: 11 A
- AC-3 Rated Current: 23 A at 380–440 V AC, Global Rating
- Conventional Free-Air Thermal Current: 32 A
- Number of Poles: 3P
- Main Contact Arrangement: 3NO
- Contactor Auxiliary Contacts: 2NO+2NC
- Overload Relay Trip Contacts: 1NO+1NC
- Motor Circuit: Three-Phase AC
- Control Supply Voltage: 380 V AC
- Rated Operational Voltage: Up to 690 V AC
- Rated Insulation Voltage: 690 V
- Starter-Frame Motor Capacity: Up to 11 kW at 380–440 V AC
- Integrated Components: S-T21 Magnetic Contactor and TH-T25 Thermal Overload Relay
- Relay Technology: 2-Element Thermal Overload Relay
- Trip Class: Class 10A
- Protection Functions: Motor Overload and Locked-Rotor Protection
- Connection Type: Screw Terminals
- Main Terminal Screw Size: M4
- Control Terminal Screw Size: M3.5
- Mounting Type: DIN Rail / Panel Mount
- Model: MST21 KPPMCG-11A
- Made in: Japan
- Brand: Mitsubishi Electric
- Ref: MITSB-Cont-MST21 KPPMCG-11A
- Unit: Pcs
