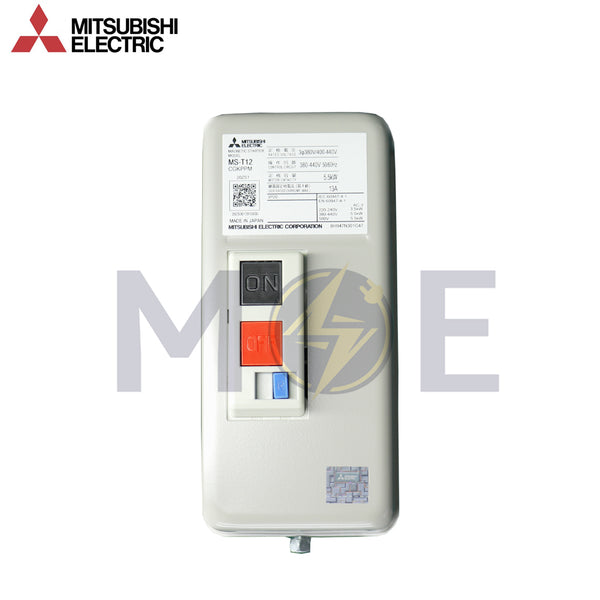

Mitsubishi MS-T12 KPPMCG Magnetic Motor Starter 3P 11A (9–13A) 5.5kW 380V AC | MS-T12 KPPMCG-11A

Description

Mitsubishi MS-T12 KPPMCG Magnetic Motor Starter 3P 11A (9–13A) 5.5kW 380V AC | MS-T12 KPPMCG-11A

- Product Type: Direct-On-Line (DOL) Magnetic Motor Starter
- Series: MS-T
- Starter Frame: MS-T12
- Contactor Frame: S-T12
- Compatible With: Three-Phase AC Motors Drawing 9–13 A
- Adjustable Overload Range: 9–13 A
- Heater Designation: 11 A
- AC-3 Rated Current: 9 A, Japan Rating / 12 A, Global Rating at 380–440 V AC
- Conventional Free-Air Thermal Current: 20 A
- Number of Poles: 3P
- Main Contact Arrangement: 3NO
- Contactor Auxiliary Contacts: 1NO
- Overload Relay Trip Contacts: 1NO+1NC
- Motor Circuit: Three-Phase AC
- Control Supply Voltage: 380 V AC
- Rated Operational Voltage: Up to 690 V AC
- Rated Insulation Voltage: 690 V
- Rated Motor Power: 4 kW, Japan Rating / 5.5 kW, Global Rating at 380–440 V AC
- Integrated Components: S-T12 Magnetic Contactor and TH-T18 Thermal Overload Relay
- Relay Technology: 2-Element Thermal Overload Relay
- Trip Class: Class 10A
- Protection Functions: Motor Overload and Locked-Rotor Protection
- Connection Type: Screw Terminals
- Main Terminal Screw Size: M3.5
- Control Terminal Screw Size: M3.5
- Mounting Type: DIN Rail / Panel Mount
- Model: MS-T12 KPPMCG-11A
- Made in: Japan
- Brand: Mitsubishi Electric
- Ref: MITSB-Cont-MS-T12 KPPMCG-11A
- Unit: Pcs

Product form

SKU: 3029

Product Information

  • Mitsubishi MS-T12 KPPMCG direct-on-line magnetic motor starter for controlling and protecting three-phase AC motors drawing 9–13A. It combines an S-T12 3-pole magnetic contactor with an 11A TH-T18 thermal overload relay adjustable from 9–13A. It supports up to 5.5kW at 380–440V AC under global ratings.
  • Brand: Mitsubishi
  • Model: MS-T12 KPPMCG-11A
  • Made in: Japan
  • Ref: MITSB-Cont-MS-T12 KPPMCG-11A
  • Unit: Pcs
