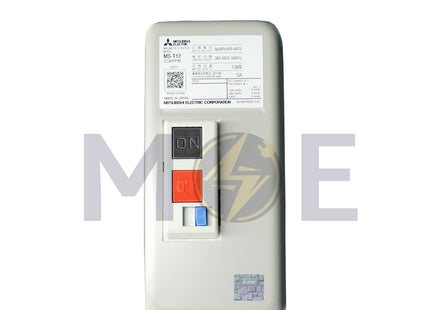

Mitsubishi MS-T12 KPPMCG Magnetic Motor Starter 3P 1.3A/1.7A 5.5kW 380V AC | MST12 KPPMCG-1.3-1.7A

Description

Mitsubishi MS-T12 KPPMCG Magnetic Motor Starter 3P 1.3A/1.7A 5.5kW 380V AC | MST12 KPPMCG-1.3-1.7A

- Product Type: Direct-On-Line (DOL) Magnetic Motor Starter
- Series: MS-T
- Starter Frame: MS-T12
- Contactor Frame: S-T12
- Overload Relay: TH-T18 Thermal Overload Relay
- Overload Heater Options: 1.3 A / 1.7 A
- Adjustment Range with 1.3 A Heater: 1–1.6 A
- Adjustment Range with 1.7 A Heater: 1.4–2 A
- Compatible Motor Current: 1–2 A, Depending on Installed Heater
- Number of Poles: 3P
- Main Contacts: 3NO
- Contactor Auxiliary Contact: 1NO
- Overload Relay Contacts: 1NO+1NC
- Trip Class: Class 10A
- Reset Mode: Manual or Automatic, Selectable
- Control Supply Voltage: 380 V AC
- Rated Insulation Voltage: 690 V
- AC-3 Operational Current: 9 A Japan Rating / 12 A Global Rating at 380–440 V AC
- Conventional Free-Air Thermal Current: 20 A
- Rated Motor Power: 4 kW Japan Rating / 5.5 kW Global Rating at 380–440 V AC
- Connection Type: Screw Terminals
- Main Terminal Screw Size: M3.5
- Control Terminal Screw Size: M3.5
- Mounting Type: DIN Rail / Panel Mount
- Standard: IEC 60947-4-1
- Model: MST12 KPPMCG-1.3-1.7A
- Made in: Japan
- Brand: Mitsubishi Electric
- Ref: MITSB-Cont-MST12 KPPMCG-1.3-1.7A
- Unit: Pcs

Product form

SKU: 3025

Product Information

  • Mitsubishi MS-T12 KPPMCG direct-on-line magnetic motor starter for three-phase AC motors. This product designation covers two separate thermal-overload heater options: the 1.3A heater adjusts from 1–1.6A, while the 1.7A heater adjusts from 1.4–2A. Verify the installed heater designation before ordering or connecting the starter.
  • Brand: Mitsubishi
  • Model: MST12 KPPMCG-1.3-1.7A
  • Made in: Japan
  • Ref: MITSB-Cont-MST12 KPPMCG-1.3-1.7A
  • Unit: Pcs
