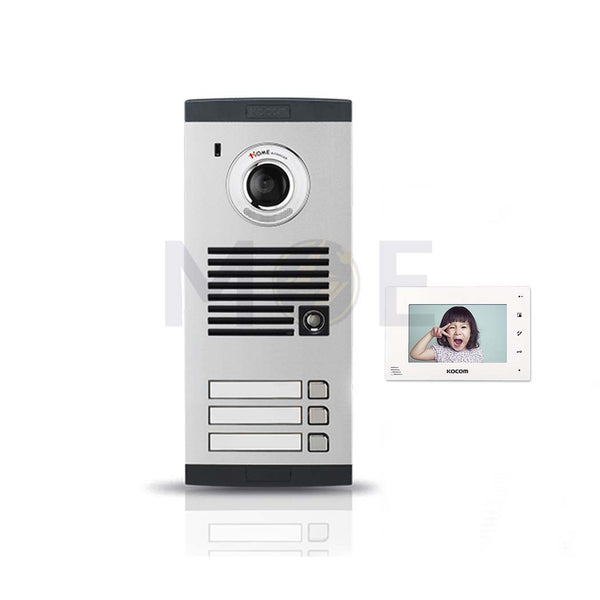

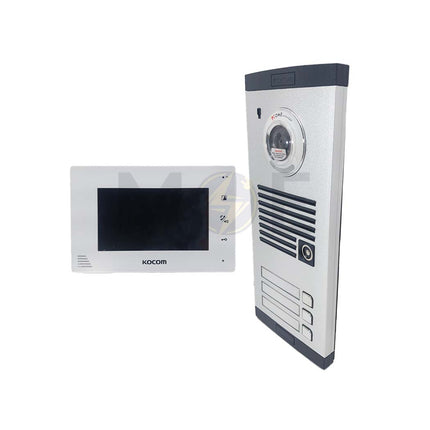

Kocom 3-monitor Video Door Phone Kit 7inc | KCV-A374 KVL-C303i
-Type: Wired 3-monitor Video Door Phone Kit (Expandable)
-Units Included: 3× indoor monitors, 1× outdoor panel
-Compatibility / Expandability: supports up to 3 monitors (with sub-audio unit KDP‑602G), 2 outdoor panels.
-Wiring System: Analog wiring system, 4-wire polarity.
-Connections: 4-wire (panel), 6/8-wire (multi-monitor with sub-audio unit), 2 wires from monitor to door strike relay.
-Communication: Analog, hands-free 2-way audio, 1-way video
-Door Strike Control: Yes, Door Release Unlocking can be done from any indoor monitor
-Intercom Distance: Distance Between Monitor and Panel: Up to 100 meters (using 0.65 mm² copper wire or better), Distance Between Monitors: Up to 50–70 meters recommended for stable communication, depending on the cable and quality.
-Compatible Accessories: Sub-monitor models like KCV-A374SD, KIP-605PG or KIP-611PG (depending on wiring), sub-audio unit model: KDP-602G or similar.

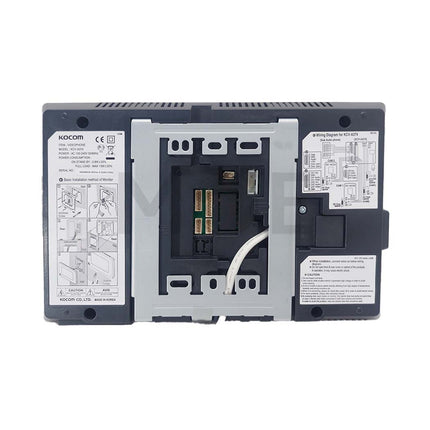

KCV‑A374 Indoor Monitors (×3)
-Screen: 7″ (17.8 cm) digital color LCD, NTSC/PAL auto switch
-LCD OSD Menu
-Communication: Hands-free audio/video, 5 ringtone choices, internal intercom capability ( room to door and main monitor to sub units)
-Connections: up to 2 door cameras and 2 monitors with sub audio unit KDP-602D
-Control & Buttons: soft-touch (capacitive) buttons on the front panel, Door release, Call and ring volume Adjustment, 5 ringtone/melody options (selectable)
-Wiring type: 4-wire polarity; sub–audio unit uses 6-wire polarity
-Wiring Gauge & Range: 0.65mm wire up to 100 meters with panel, up to 70 meters with other monitors or sub-unit (recommended).
-Mounting: Wall mount
-OSD Language: English, Russian, Spanish
-Color: White
-Power: AC 100–240 V, 50/60 Hz
-Consumption: ultra low power consumption ~0.8 W (standby), ~13 W max
-Operating Temp: 0 °C to +40 °C
-Dimensions: 222 × 144 × 33 mm
-Installation & Demonstration: https://youtu.be/wIqvuq1HSto

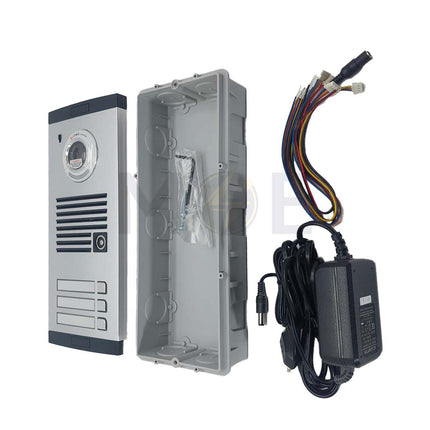

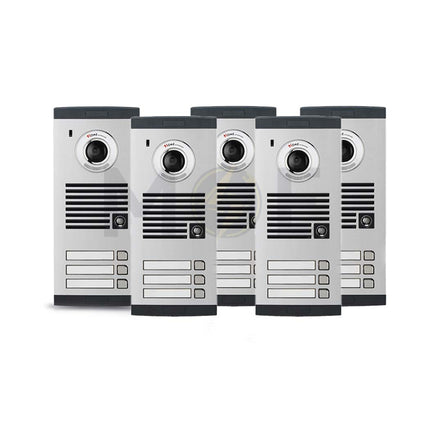

KVL‑C303i Outdoor Panel
-Power supply: DC 15 V ± 1 V
-Consumption: 0.5 W standby, 4.5 W in operation
-Video & Camera: Over 420 TV lines resolution, Lens: 3.6 mm, F/1.6, Diagonal view: 81° (adjustable), Night vision: white LED; sensitivity ~0.1 Lux, NTSC/PAL selectable.
-Controls & Buttons: 3 call buttons for 3 different monitors/residences
-Compatibility & Expandability: Pairs with KCV series monitors (e.g., KCV‑A374), provides standard dry contact relay output for electric strikes, Supports extension modules (KEL series) for multi-unit entry panels, Optional i-Button key unlock; can register up to 1,300 users, Ideal for small apartment blocks or multi-residence gates.
-Functional Features: Supports mutual calls with residents (intercom), Door release control, including via optional i-Button access. Integrated night LED light to illuminate visitors at the doorway
-Housing: Metal (Zn/Al), flush-mount, vandal resistant
-Mounting: Flush mount
-Temp Range: –20 °C to +50 °C
-Dimensions: 125 × 290 × 48.4 mm
-Power Connection Guide: https://youtu.be/stTf1mdzaGs
-Brand: Kocom
-Made in: Korea
-Model: KCV-A374 KVL-C303i
-Ref: Kcm-3Pcs-7-KCV-A374+KVL-C303i
-Unit: Kit
