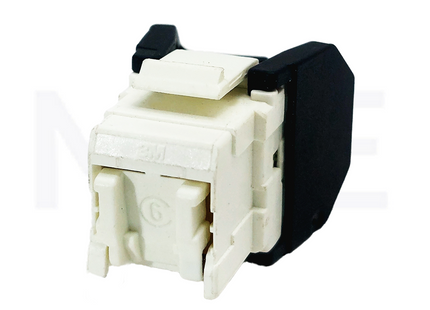

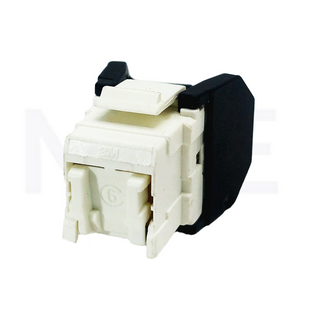

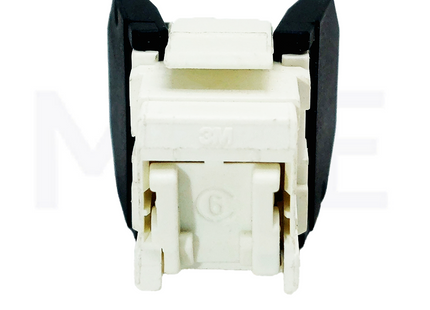

3M Cat6 RJ45 Network Keystone Jack Tools Less UTP | VOL-OCK6-U-W

Description

3M Cat6 RJ45 Network Keystone Jack Tools Less UTP | VOL-OCK6-U-W

-Category: Cat 6 (TIA/EIA-568 B.2 and ISO/IEC 11801 2nd Edition compliant)
-Mounting: Keystone-compatible

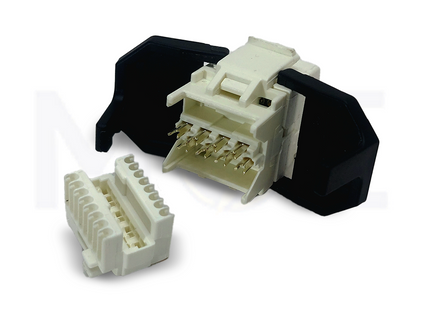

-Termination: Tool-less IDC (Insulation Displacement Contact) with single-action termination

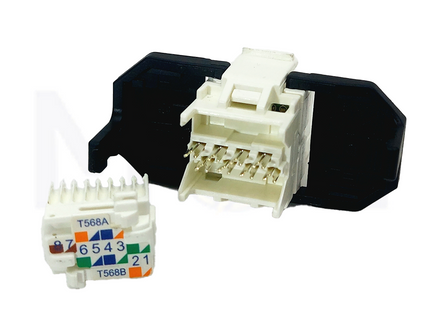

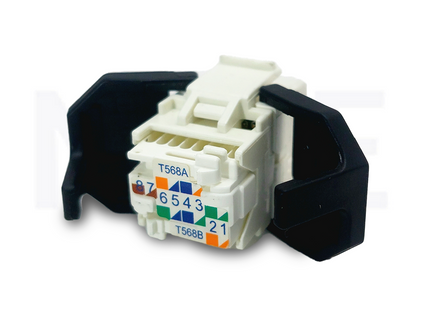

-Wiring Schemes: Supports both T568A and T568B
Cable Compatibility:
-Solid conductors: AWG 26 to 22 (0.50 mm to 0.65 mm)
-Stranded conductors: 7 x 0.15 mm to 0.20 mm
-Maximum sheath diameter: 1.6 mm
-Color: White
Design Features:
-Integral shutter for dust protection
-Top or bottom cable entry for flexible cable management
-Re-usable design allows for re-termination if wiring errors occur
-Shallow depth suitable for low-profile installations
Electrical Characteristics:
-Lead-through resistance: 17 mΩ to 20 mΩ
-Insulation resistance: >10 MΩ
-Dimensions: 23 mm x 18 mm x 35 mm (0.9 in x 0.7 in x 1.4 in)

Read more

Product form

SKU: 3620

Product Information

  • Cat6 UTP RJ45 keystone jack, tool-less, one-click IDC termination, support T568A and T568B wiring, up to 1 Gbps, White
  • Brand: 3M
  • Model: VOL-OCK6-U-W
    • Ref: 3M-3M-Keystone VOL-OCK6-U
    • Unit: Pcs
    MOELECTRIC mohammad osman electric MOE كهرباء عثمان محمد عثمان الكتريكView Item Attachment
    Currently delivering in Lebanon only.Currently delivering in Lebanon only.

    Delivery is available across Lebanon only. Same-day delivery in Beirut and its suburbs, while other areas are delivered within 2–4 working days. International shipping is currently unavailable.

    Free pickup in our shop(s)

    Fast Pickup & Delivery  Same-day delivery in Beirut & suburbs
    2–4 working days across Lebanon

    • Shipped today? Order within: Jul 09, 2026 23:59:00 +0300

    Description

    3M Cat6 RJ45 Network Keystone Jack Tools Less UTP | VOL-OCK6-U-W

    -Category: Cat 6 (TIA/EIA-568 B.2 and ISO/IEC 11801 2nd Edition compliant)
    -Mounting: Keystone-compatible
    -Termination: Tool-less IDC (Insulation Displacement Contact) with single-action termination
    -Wiring Schemes: Supports both T568A and T568B
    Cable Compatibility:
    -Solid conductors: AWG 26 to 22 (0.50 mm to 0.65 mm)
    -Stranded conductors: 7 x 0.15 mm to 0.20 mm
    -Maximum sheath diameter: 1.6 mm
    -Color: White
    Design Features:
    -Integral shutter for dust protection
    -Top or bottom cable entry for flexible cable management
    -Re-usable design allows for re-termination if wiring errors occur
    -Shallow depth suitable for low-profile installations
    Electrical Characteristics:
    -Lead-through resistance: 17 mΩ to 20 mΩ
    -Insulation resistance: >10 MΩ
    -Dimensions: 23 mm x 18 mm x 35 mm (0.9 in x 0.7 in x 1.4 in)

    Read more
