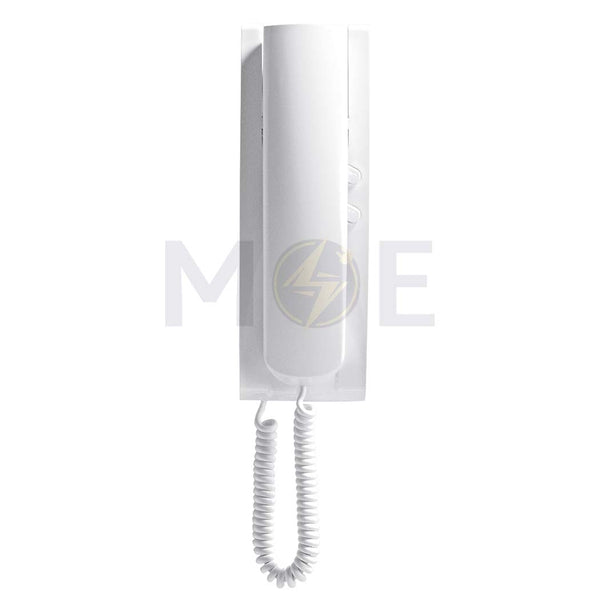

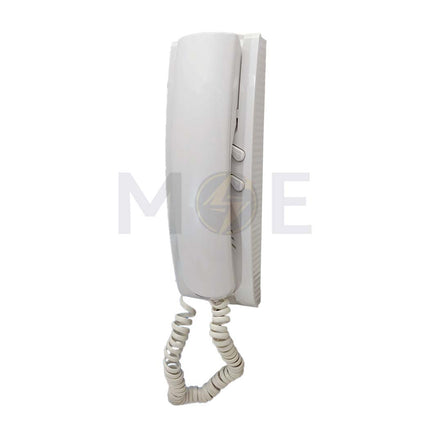

Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems Due Fili Plus | 8879

Description

Vimar Elvox Indoor Audio Handset (Door release, room call) for Door Phone Systems Due Fili Plus | 8879

-Type: Audio Analog Indoor Handset for Door Entry System
-Serie & Compatible Panels: Serie Pixel, Serie 1300 Audio/Video Panels
-Units Included: 1 Indoor Handset
-Buttons & Controls: Door Release, room-to-room call (often used for stair‑light or secondary function)
-Communication Features: Analog, full-duplex
-Wiring Type: 2-wire BUS
-Mounting: Wall mount
-Power Supply: 20–26 V DC, regulated by the central power supply unit, supplied via the 2-wire bus from the system's Due Fili Plus power supply module (e.g., Elvox 6923, 6925, or similar).
-Power Consumption: Standby 10 mA, max 150 mA
-Wiring Gauge & Range: 1mm² wire up to 100 meters, 1.5mm² wire up to 150 meters
-Setup: Connect terminals 1 and 2 to the BUS system from the central controller/power supply
-Compatible with: Works with all internal units in the Vimar Due Fili Plus range( Serie Pixel, Serie 1300 Audio/Video), including audio and video handsets and monitors. Works with: Elvox 8870 series 2‑wire intercom systems "Due Fili/Plus". Not compatible with: 8870–8875 series that do not use the 2-wire bus architecture. Compatible with Due Fili expansion interfaces and power supply modules (e.g., model 6922.1)
-Color: White
-Dimension: 75x222x64 mm
-Brand: Elvox
-Made in: Italy
-Model: 8879
-Ref: Elv-Due Fili-Int-Ph-8879
-Unit: Pcs

Read more

Product form
MOELECTRIC mohammad osman electric MOE كهرباء عثمان محمد عثمان الكتريكView Item Attachment
MOELECTRIC mohammad osman electric MOE كهرباء عثمان محمد عثمان الكتريكView Item Related Link

SKU: 1382

Product Information

  • Audio Analog, (Door release, room to room call), 2-wire BUS, Wall mount, DC 20-26V Supplied by central power supply or control unit, White
  • Brand: Elvox
  • Model: 8879
  • Made in: Italy
  • Ref: Elv-Due Fili-Int-Ph-8879
  • Unit: Pcs
