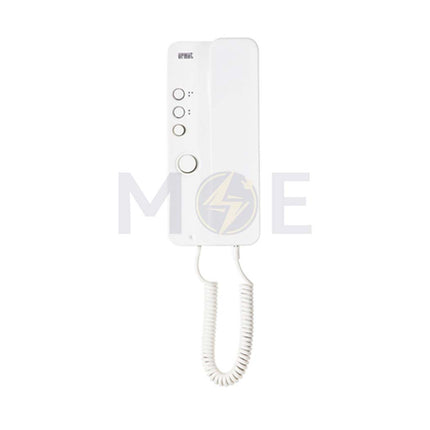

Urmet Miro Indoor Audio Handset (Door release, room call, + 2 extra slots) for Door Phone Systems| 1150/1

وصف

Urmet Miro Indoor Audio Handset (Door release, room call, + 2 extra slots) for Door Phone Systems| 1150/1

-Type: Audio Analog Indoor Handset for Door Entry System
-Serie & Compatible Panels: Mìro, Urmet's 4+n audio entry panels
-Units Included: 1 Indoor Handset
-Buttons & Controls: Door Release, room-to-room call, and slots for two extras
-Communication Features: Analog, full-duplex
-Wiring Type: 4+n BUS
-Mounting: Wall mount
-Power Supply: 12V AC (provided via the external entry panel unit).
-Power Consumption: Standby 15 mA, active 60-80 mA
-Wiring Gauge & Range: 0.5 mm² wire up to 100 meter, Recommended use 0.75 mm² - 1 mm² wire up to 200 meters. (Distance depends on power supply quality and wiring layout)
-Setup: Connect its terminals to the central control unit using the 4+n wiring system (speech, microphone, earth, door release) + 1 individual call wire per unit. Wiring Connections: Terminal/Function, T-Microphone (MIC–), R-Speaker (SPK+), E-Common Ground, 1-Door Release, C-Call Line (from panel, individual per apartment). Use color-coded wiring for easy installation and diagnostics.
-Compatible with: is compatible with Urmet's 4+n audio entry panels.Fully compatible with all Urmet 4+n indoor handsets (1150 series: 1150, 1150/1, 1150/35, 1183/5, etc.). Ideal for use in Urmet 4+n BUS audio systems, Works with other Mìro handsets, call panels, and control modules
-Color: White
-Dimension: 90x220x50 mm
-Brand: Urmet
-Made in: China
-Model: 1150/1
-Ref: Urm-Int Ph-1150/1
-Unit: Pcs

يقرأ أكثر

شكل المنتج

رمز التخزين التعريفي: 1385

معلومات المنتج

  • Audio Analog, (Door release, room to room call, +2 extra slot), Multi-wire, Wall mount, AC 12V Supplied by control Panel unit, White

  • Brand: Urmet

  • Model: 1150/1

  • Made in: China

  • Ref: Urm-Int Ph-1150/1

  • Unit: Pcs
