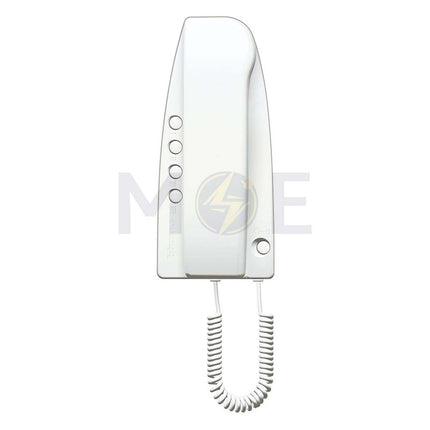

Bticino Sprint Indoor Audio Handset (Door release, Volume, +4 extra slots) for Door Phone Systems| 334202

وصف

Bticino Sprint Indoor Audio Handset (Door release, Volume, +4 extra slots) for Door Phone Systems| 334202

-Type: Audio Analog Indoor Handset for Door Entry System
-Serie & Compatible Panels: BTicino Sprint, BTicino 5‑wire analog outdoor entry panels
-Units Included: 1 Indoor Handset
-Buttons & Controls: Door Release, and slots for four extras, Volume Adjustment button (3 levels)
-Communication Features: Analog, full-duplex
-Wiring Type: 4+n BUS
-Mounting: Wall mount
-Power Supply: 12–18V AC (provided via the external entry panel unit Bticino 336842, or equivalent).
-Power Consumption: Standby: Negligible (no active electronics or display), During Operation (talking or door release): Approx. 15–25 mA, depending on cable length and system load.
-Wiring Gauge & Range: 0.5 mm² wire up to 100 meter, Recommended use 0.75 mm² - 1 mm² wire up to 200 meters. (Distance depends on power supply quality and wiring layout)
-Setup: Connect its terminals to the central control unit using the 4+n wiring system, Wiring Connections: 1=Common Ground (0 V) "Shared with other handsets", 3=Microphone (+) "Transmits voice to outdoor panel", 4=Speaker (+) "Receives voice from outdoor panel", 5=Call wire (n) "One per apartment; receives call signal", 6=Door release
-Compatible with: LINEA 2000 Entrance panel, Bticino analogue intercom panels, handsets, central units on the same BUS
-Color: White
-Dimension: 216×101×56 mm
-Brand: Bticino
-Made in: Bulgaria
-Model: 334202 Sprint
-Ref: Btc-Int Ph-334202
-Unit: Pcs

يقرأ أكثر

شكل المنتج

رمز التخزين التعريفي: 1386

معلومات المنتج

  • Audio Analog, (Door release, +4 extra slot, + vol adj.), Multi-wire, Wall mount, AC 12-18V Supplied by control Panel unit, White

  • Brand: Bticino

  • Model: 334202 Sprint

  • Made in: Bulgaria

  • Ref: Btc-Int Ph-334202

  • Unit: Pcs
